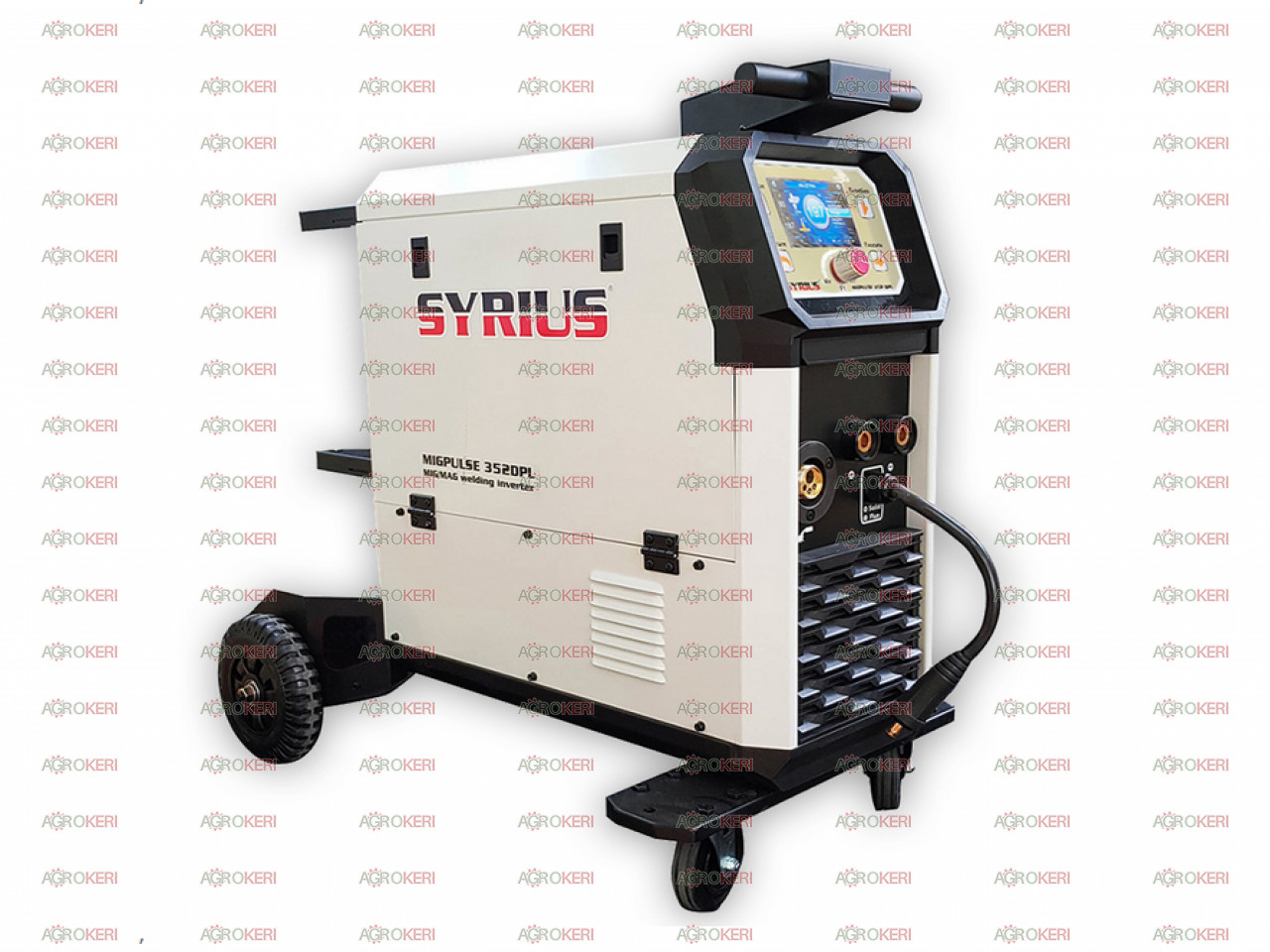

SYRIUS MIGPULSE 352 DPL welding inverter, CO welder

A modern welding machine with a large LCD display, which makes settings quick and clear. This welding machine is suitable for welding stainless steel, aluminum, carbon steel and other special materials. Together with the synergic control and simple MIG setting, it meets the requirements of all consumable electrodes.

• Welding processes with MIG / MAG, MMA, LIFT TIG functions.

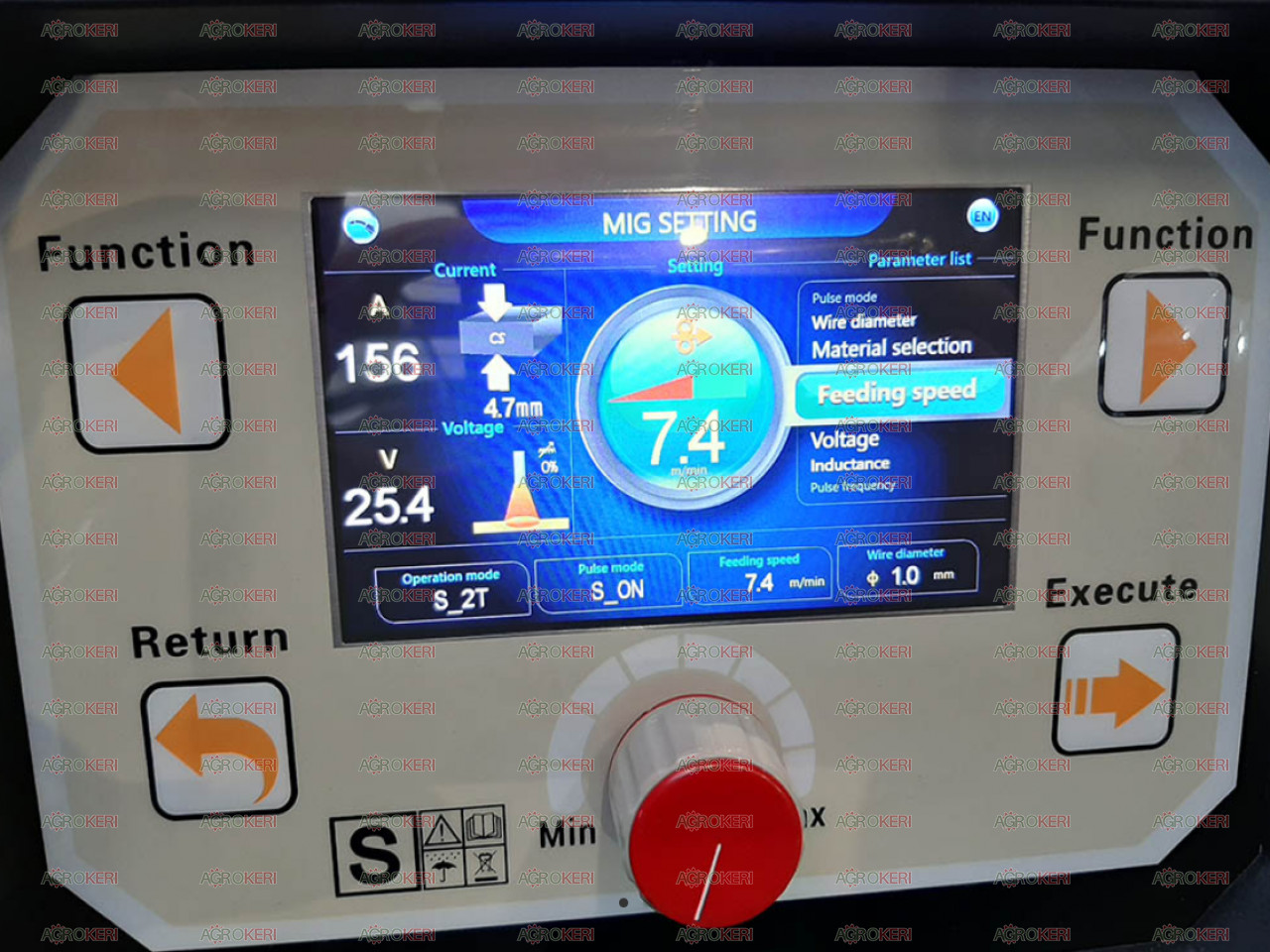

• Large color LCD screen, which is graphical and clearly visible,
• The operating interface is good and easy to use
• 4-language display
• 18 memory locations for storing setting parameters
• Synergic control
• Single and Double pulse function, perfect for aluminum welding
• Adjustable pulse frequency and duty cycle
• Spatter-free welding, excellent homogeneous weld appearance
• Use of 300mm/15kg draw drum
• 2T / 4T scheduling function
• 4-roller wire feeder
• Intelligent fan control: The fan only works when the welder is working and cooling is needed. This reduces noise and reduces power consumption.
• Remote control, so it works well with foot pedal and remote control gun.
• IGBT inverter power module for reliability and small size.
• Overcurrent and thermal protection

Rated voltage: AC 380V±15% 50/60
Rated power: 13.9 KVA
Welding current:
MIG: 40-350 A
MMA: 30-300 A
TIG: 20-300 A
Switching time MIG: 350A/30% | 248A/60% | 192A/100%
Switching time TIG: 300A/30% | 212A/60% | 164A/100%
Switching time MMA: 300A/30% | 212A/60% | 164A/100%
Wire speed: 2-18 m/min
Weldable material thickness: 0.5-8 mm
Wire diameter: 0.8-1.2 Φ
Dimensions: 605X310X595 mm
Weight: 44.2 kg
