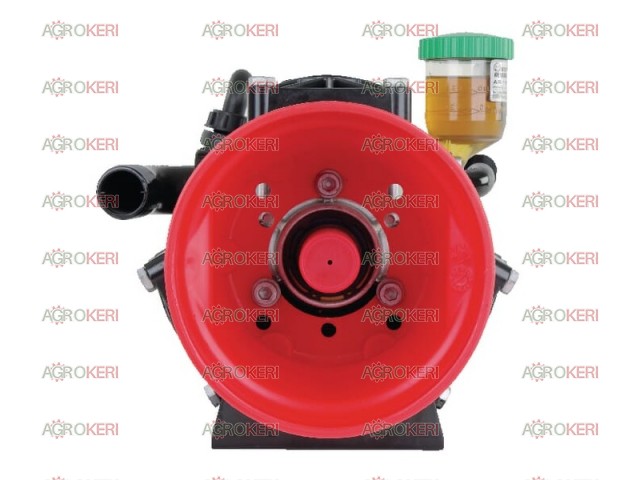

Sprayer Pump Annovi Reverberi Piston Diaphragm

Application

Semi-hydraulic, low-pressure diaphragm pumps for weed control and liquid manure spreading.
The AR DUE, AR202 and AR252 pump models are horticultural diaphragm pumps.


Features

All parts in contact with the liquid are plastic-coated. In the case of AR DUE, AR202 and AR252 pumps, these parts are made of anodized aluminum.
The crank mechanism operating in an oil bath is equipped with an inspection tank (except AR DUE).
Bolts with galvanic Dacromet protective treatment.


Technical Information

SP: pump with universal shaft as drive shaft
Bp C: pump with PTO shaft, 1 3/8" – 6 spline
Bp C/C: pump with through shaft: double-sided PTO shaft, 1 3/8" – 6 spline – 1 3/8" – 6 spline
BpTwin: pump with through shaft: double-sided PTO shaft, 1 3/8" – 6 spline – 1 3/8" – 6 spline


Includes

Piston diaphragm pump with safety valve and air chamber (except AR DUE, AR202 and AR252)
Pumps are supplied with rubber diaphragms as standard equipment


Maximum Flow Rate
108 l/min

Speed
1000 rpm

Maximum Fluid Temperature (continuous)
60 °C

Overall Length
340 mm

Height
293 mm

Required Power
4.1 kW

Engine Power
5.6 HP

Weight
14 kg

Maximum Pressure
20 bar

Diaphragm Material
NBR

Suction Port Ø
40 mm

Delivery Port Ø
25 mm

Shaft Type
1 3/8" (6)

Width
306 mm
