Landtrac TB 504C, tractor, 50 HP, 4WD, air conditioning, 12+12 speed

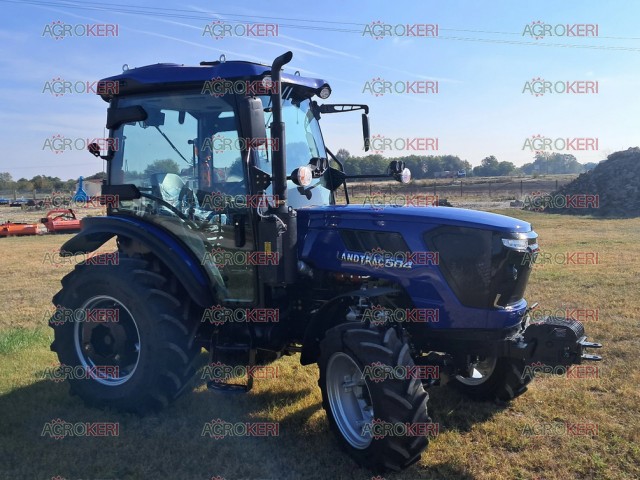

Landtrac TB504C type 50 hp tractor with air-conditioned comfort cab.
DIMENSIONS AND WEIGHTS
Dimensions L-W-H 4220x1750x2780 mm
Wheelbase 2110 mm
Weight 2850 kg
Clearance height at front axle 420 mm
Tire size front 280/85R20
Tire size rear 380/85R24

ENGINE
Type: Euro V electric injection, water-cooled diesel engine
Number of cylinders 4
Displacement 2982 cm3
Power 50 HP
Air filter Paper filter

DRIVETRAIN
Clutch
Double disc dry clutch
Gearbox speeds 12 + 12 synchromesh
P.T.O. axle power 33 Kw
P.T.O. axle speed 540 / 1000
Maximum speed 37 km/h

HYDRAULICS
Pump output (L/min) 32 liters/min
Lifting capacity 1000 kg
3 POINTS Standard (2 categories)
Number of hydraulic connections 6

FRONT AXLE
Front drive engagement Mechanical
Differential lock Mechanical
Steering Hydraulic power steering

BRAKING SYSTEM
Rear axle Mechanical
Trailer brake: Air brake valve

TOWING
Without brake 750 kg
With overrun brake 4000 kg
With air brake 10000 kg

ELECTRICAL SYSTEM
Battery 12V 120AH
Generator power 12V 500W
Trailer electrical connection Yes
