Annovi Reverberi 50 SP SGC BlueFlex Sprayer Pump
16284AR
To order
Net price:
1.021,31 EUR
Gross price:
1.297,07 EUR
Product description
Description
Anodized medium- and high-pressure pumps
Parts in contact with the liquid are made of anodized material
(for AR30 and AR50 models, these parts are plastic-coated)
Application
For spraying equipment in fruit and grape cultivation
(vertical crops)
Features
The crank mechanism operates in an oil bath with inspection reservoir
All screws are galvanically zinc-plated
Technical information
SP: pump with universal shaft as drive shaft
C: pump with PTO shaft, 1 3/8" – 6 splines
C/C: pump with through shaft: double-sided PTO shaft,
1 3/8" – 6 splines – 1 3/8" – 6 splines
C/SP: pump with through shaft: 1 3/8" – 6 splines, universal shaft
Product advantages
Long service life
Included
Pumps are equipped with rubber diaphragms as standard
Standard equipment includes a safety valve
(except AR303, AR403 and AR503)
For C/SP pumps, the protective cup is part of the standard equipment

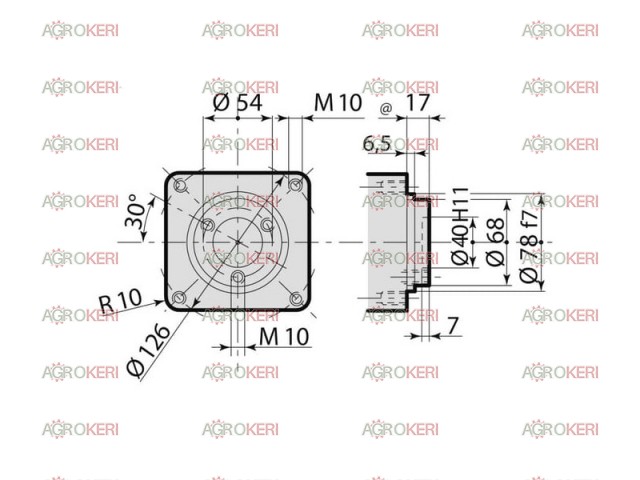

Drive shaft
Universal (inch)
Height
342 mm
HP
3.4 HP
Length
210 mm
Maximum flow rate
52 l/min
Maximum pressure
40 bar
Maximum speed
550 rpm
Maximum temperature
60 °C
Diaphragm material
BlueFlex
Suction side connection Ø
30 mm
Pressure side connection Ø
18 mm
Power
3.7 kW
Shaft type
Universal
Weight
17.5 kg
Width
302 mm
Anodized medium- and high-pressure pumps
Parts in contact with the liquid are made of anodized material
(for AR30 and AR50 models, these parts are plastic-coated)
Application
For spraying equipment in fruit and grape cultivation
(vertical crops)
Features
The crank mechanism operates in an oil bath with inspection reservoir
All screws are galvanically zinc-plated
Technical information
SP: pump with universal shaft as drive shaft
C: pump with PTO shaft, 1 3/8" – 6 splines
C/C: pump with through shaft: double-sided PTO shaft,
1 3/8" – 6 splines – 1 3/8" – 6 splines
C/SP: pump with through shaft: 1 3/8" – 6 splines, universal shaft
Product advantages
Long service life
Included
Pumps are equipped with rubber diaphragms as standard
Standard equipment includes a safety valve
(except AR303, AR403 and AR503)
For C/SP pumps, the protective cup is part of the standard equipment
Drive shaft
Universal (inch)
Height
342 mm
HP
3.4 HP
Length
210 mm
Maximum flow rate
52 l/min
Maximum pressure
40 bar
Maximum speed
550 rpm
Maximum temperature
60 °C
Diaphragm material
BlueFlex
Suction side connection Ø
30 mm
Pressure side connection Ø
18 mm
Power
3.7 kW
Shaft type
Universal
Weight
17.5 kg
Width
302 mm
